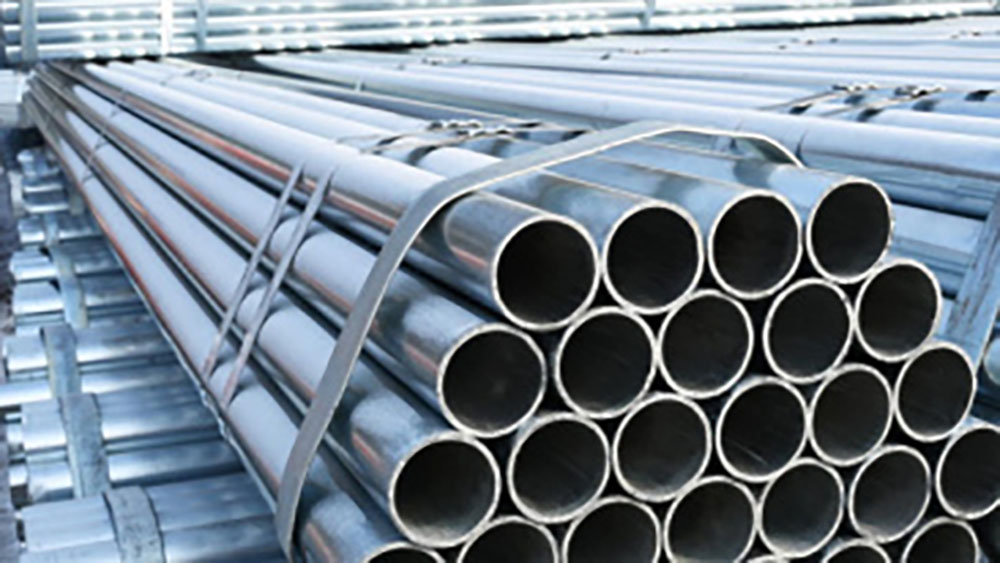

Hot-dip galvanized steel pipe
Specification: DN15-DN300
Uses: Widely used in water, gas, air, oil and steam and other low-pressure fluid transportation and mechanical structure
Product Details
Hot-dip galvanized steel pipe is a kind of steel pipe treated by galvanizing process, which has excellent anti-corrosion performance and long service life. The manufacturing process involves immersing the steel pipe in molten galvanizing liquid, so that a uniform zinc layer is attached to its surface. This kind of steel pipe is widely used in construction, transportation, water conservancy and other fields, playing a role in structural support and protection. Its length can be customized according to needs, and the common ones range from a few meters to tens of meters. Due to its excellent corrosion resistance, hot-dip galvanized steel pipes exhibit good durability in harsh environments, greatly extending service life and reducing maintenance costs. In a word, hot-dip galvanized steel pipe is an efficient and reliable metal pipe that provides solid support for various projects.
calibre | Wall Thickness (mm) | Price (RMB/ton) | calibre | Wall Thickness (mm) | Price (RMB/ton) |
DN15 | 4 points*2.5*6 | 7430 | DN125 | 5 inches*4.0*6 | 7070 |
4 points*2.75*6 | 7430 | 5 inches*4.25*6 | 7070 | ||
DN20 | 6 points*2.5*6 | 7350 | 5 inches*4.5*6 | 7070 | |
6 points*2.75*6 | 7330 | 5 inches*4.75*6 | 7150 | ||
6 points*3.0*6 | 7370 | 5 inches*5.0*6 | 7220 | ||
DN25 | 1 inches*3.0*6 | 7170 | DN150 | 6 inches*4.25*6 | 7100 |
1 inches*3.25*6 | 7150 | 6 inches*4.5*6 | 7100 | ||
1 inches*3.5*6 | 7190 | 6 inches*4.75*6 | 7150 | ||
1 inches[*3.75*6 | 7340 | 6 inches*5.0*6 | 7200 | ||
1 inches*4.0*6 | 7690 | 6 inches*5.5*6 | 7250 | ||
DN32 | 1.2 inches*3.0*6 | 7100 | 6 inches*6.0*6 | 7300 | |
1.27*3.25*6 | 7100 | DN200 | 8 inches*5.5*6 | 7210 | |
1.2 inches*3.5*6 | 7080 | 8 inches*5.75*6 | 7210 | ||
1.2 inches*3.75*6 | 7270 | 8 inches*6.0*6 | 7210 | ||
1.2 inches*4.0*6 | 7620 | 8 inches*6.25*6 | 7310 | ||
DN40 | 1.5 inches*3.25*6 | 7050 | 8 inches*6.5*6 | 7360 | |
1.5 inches[*3.5*6 | 7050 | 8 inches*7.0*6 | 7410 | ||
1.5 inches*3.75*6 | 7050 | DN250 | 10 inches*4.0 | 7110 | |
1.5 inches*4.0*6 | 7050 | 10 inches*4.25 | 7070 | ||
1.5 inches*4.25*6 | 7340 | 10 inches*4.5 | 7040 | ||
1.5 inches*4.5*6 | 7590 | 10 inches*4.75 | 7010 | ||
DN50 | 2 inches*3.25*6 | 7010 | 10 inches*5.0 | 6980 | |
2 inches[*3.5*6 | 7010 | 10 inches*5.25 | 6960 | ||
2 inches*3.75*6 | 7010 | 10 inches*5.5 | 6940 | ||
2 inches*4.0*6 | 7050 | 10 inches*5.75 | 6920 | ||
2 inches*4.25*6 | 7150 | 10 inches*6.0 | 6900 | ||
2 inches*4.5*6 | 7400 | 10 inches*6.5 | 6880 | ||
DN65 | 2.5 inches*3.5*6 | 6930 | 10 inches*6.75 | 6880 | |
2.5 inches*3.75*6 | 6930 | 10 inches*7.0 | 6860 | ||
2.5 inches*4.0*6 | 6930 | 10 inches*7.5 | 6840 | ||
2.5 inches*4.25*6 | 7020 | 10 inches*8.0 | 6820 | ||
2.5 inches*4.5*6 | 7170 | DN300 | 12 inches*4.0 | 7080 | |
DN80 | 3 inches*3.75*6 | 6930 | 12 inches*4.25 | 6980 | |
3 inches*4.0*6 | 6930 | 12 inches*4.5 | 6980 | ||
3 inches*4.25*6 | 7000 | 12 inches*4.75 | 6980 | ||
3 inches*4.5*6 | 7020 | 12 inches*5.0 | 6960 | ||
3 inches*4.75*6 | 7070 | 12 inches*5.5 | 6910 | ||
3 inches*5.0*6 | 7170 | 12 inches*5.75 | 6890 | ||
DN100 | 4 inches*3.75*6 | 6870 | 12 inches*6.0 | 6870 | |
4 inches*4.0*6 | 6870 | 12 inches*6.5 | 6840 | ||
4 inches*4.25*6 | 6920 | 12 inches*6.75 | 6840 | ||
4 inches*4.5*6 | 6950 | 12 inches*7.0 | 6810 | ||
4 inches*4.75*6 | 7020 | 12 inches*7.5 | 6790 | ||
4 inches*5.0*6 | 7170 | 12 inches*8.0 | 6780 |
